If you follow these instructions you will void your warranty and may break your pccard or computer permanently. I am not responsible for any damage you cause or any communication laws you might break.

Reliawave 200mW Prism 2.5 card

This card looks really cool. I gotta get one.

Demarc Tech

SMC 2835W

I'm really liking this card. It has good range and doesn't seem to confuse Microsoft's crappy automatic network dropper (zero configuration). Its is also well supported by the linux 2.6 kernel and kismet.

SMC 2632W

This is the best inexpensive card I have found yet. I have the version 1 card and don't know what the version 2 is like. I haven't even bothered with an external connector because the range is so good.

NetGear MA401 Instructions

First you must pry the plastic cover open. This is pretty easy to do because there are only four friction hooks around the outside. Just put an exacto knife into the grove and twist as you work your way around.

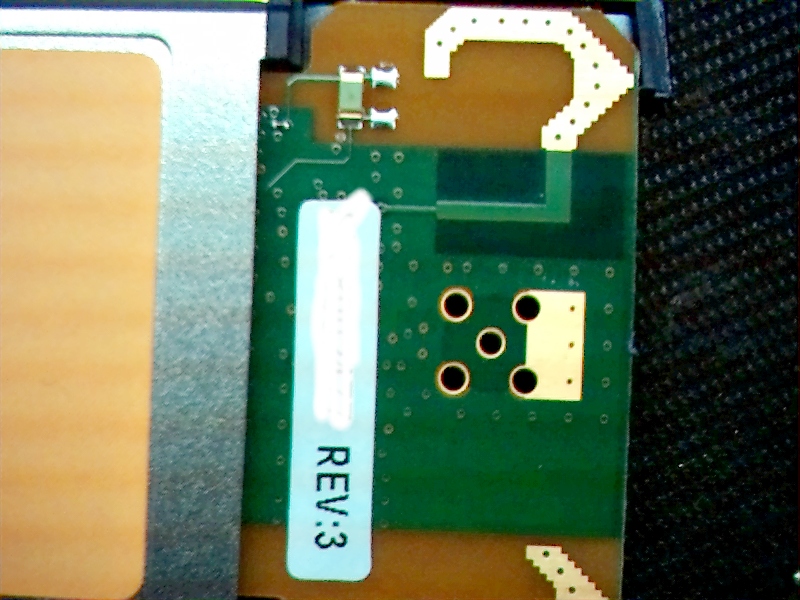

Here's a picture with the top off

Step One

The back doesn't come off as easily, it's linked into the metal casing. Instead of bending up the metal I cut the plastic with the exacto. This needs to be done to move a couple of components on the board for the external connector.

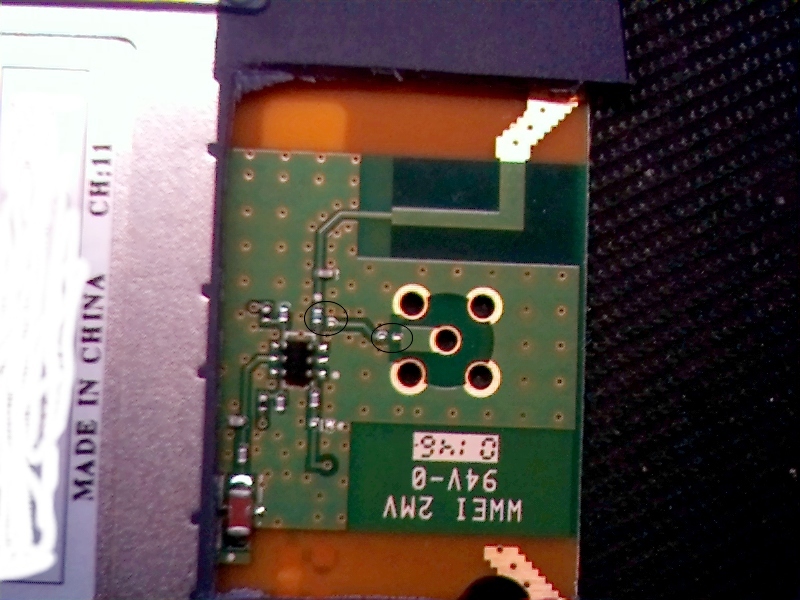

There are two circles on the large image. The one with a component in it is a zero ohm resistor. This needs to be desoldered rotated 90 degrees and resoldered. The second circle has two pads that I think are going to need a cap for impedance matching. Haven't figured out what the value is yet so I'm just going to bridge it.


I just looked at a SMC card hack and it's exactly the same. No need to re-invent the wheel, follow their instructions. SMC hack

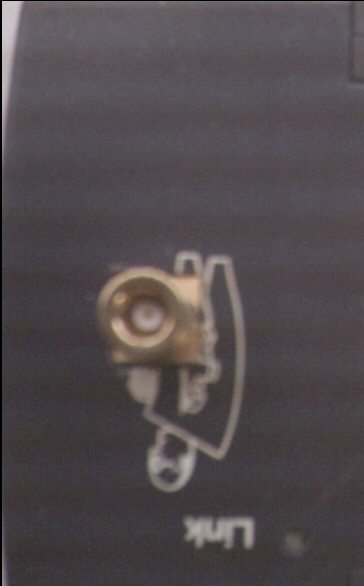

After hack

Netgear top Netgear bottom

LinkSys WPC11 Instructions

I don't recommend this card. It is under powered compared to the ones listed above.

First you must pry the plastic cover open. This is pretty easy to do because there is only a light coating of glue holding the two halves together. Just put a flat head screw driver into the grove and twist as you work your way around.

Once you've split it open the bottom half needs to be eased out. Pull it up to about 15% and then ease it back and forth. It should come out without breaking and without damaging the metal around the pccard. The front doesn't need to come out.

I didn't take any pictures at this point but there are plenty of others on the web that show the card in this state of disassembly.

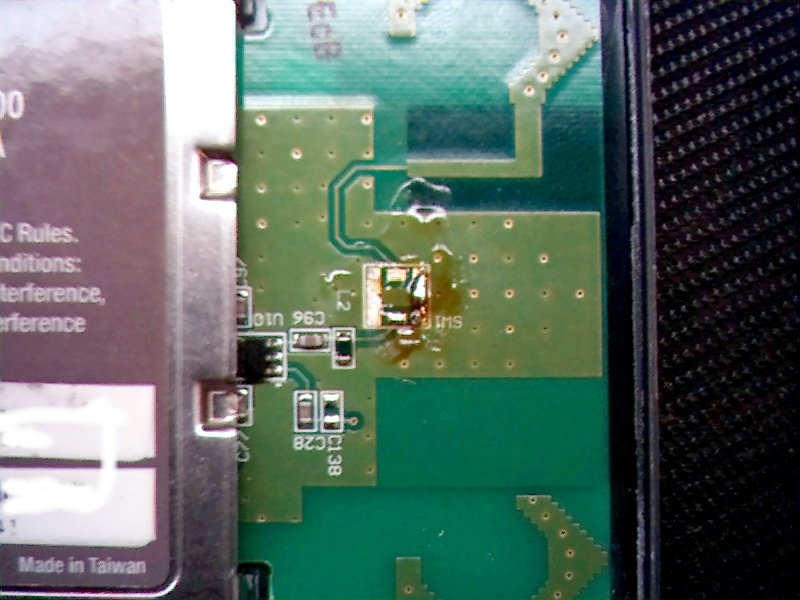

There is a little component on the board marked sw1. Doesn't look like any switch I've ever seen. This needs to come off. I did it by flowing a big bubble of solder under the component and sliding it off. Careful at this point so you don't pull the pads off the board. Here's a picture with sw1 removed.

Step One

Once you have sw1 off you need to find a connector. I used a female smb connector, but I think that a mmcx would probably be a better size. I mounted it on it's side to give it a little more strength. I still wouldn't trust appling to much pressure to it though.The center pin on my connector didn't bend well, ie. it broke, so I soldered a resistor lead coming straight out of the board and then attached the center lead to that.

Once you've got the connector on the board you might be tempted to check for shorts by measuring the resistance between the center pin and ground. When I tried this it didn't work. This is probably due to L1 being opaque to frequencies in the 2.4 Ghz range but not to DC. This is just a guess though, if you have a more plausible explanation send me email.

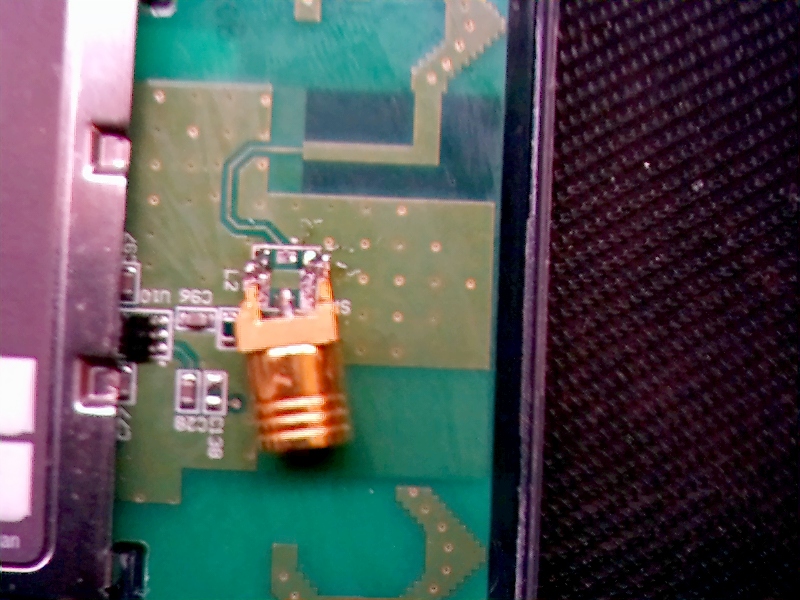

Below is a picture of the final product. If you try this send me some email and tell me how it went.

Step Two

LinkSys WPC11 Version 3 Instructions

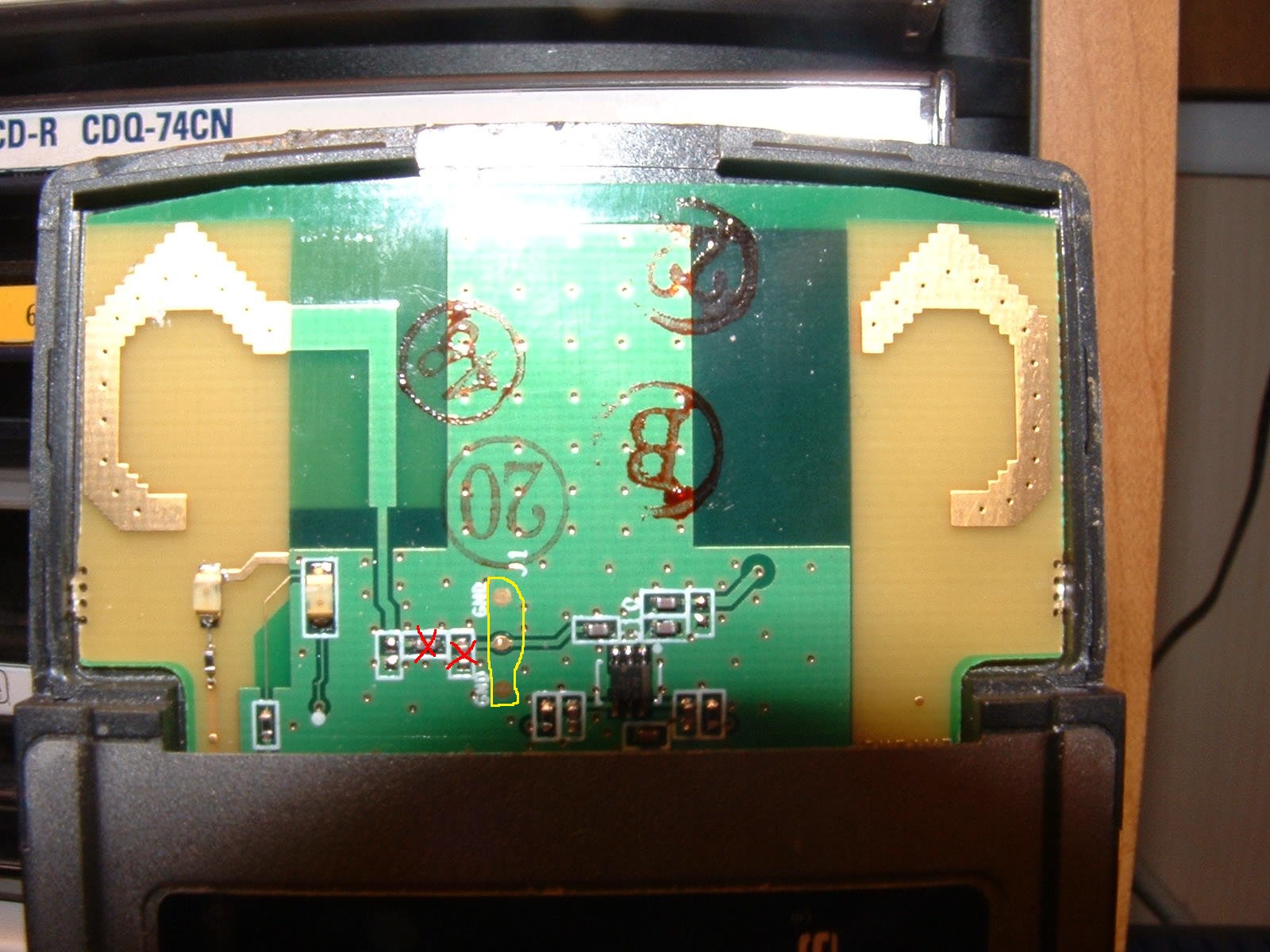

I have some version 3 pictures. I haven't done this hack myself but I have highlighted the areas that need to be changed. There are two red X's where components should be removed. The cap going from the signal line to ground may not need removing. This will take a little experimentation. Send me some email with your results if you try it.

The yellow circled pads are where you need solder the antenna connector.

WPC 11 version 3 card

LinkSys WPC11 Version 4 Instructions

I finally have some version 4 pictures. I haven't done this hack myself.

The best spots would be three pads below pc 55 and pc 65. It looks like these were designed for 2 external antenna pads.

First take of the resistor at PC55 and move it to spot PC67.

Now solder the center of your 1 st pigtail to the pad next to PC67 and the shield to the to pads next to that.

Then move PC65 to PC66

Now solder the center of your 2 nd pigtail to the pad next to PC66 and the shield to the to pads next to that.

If you still want to use the card without an external antenna only move one of the resistors above and solder only one pigtail. The firmware SHOULD then use the external antenna when its connected or the internal when its not.

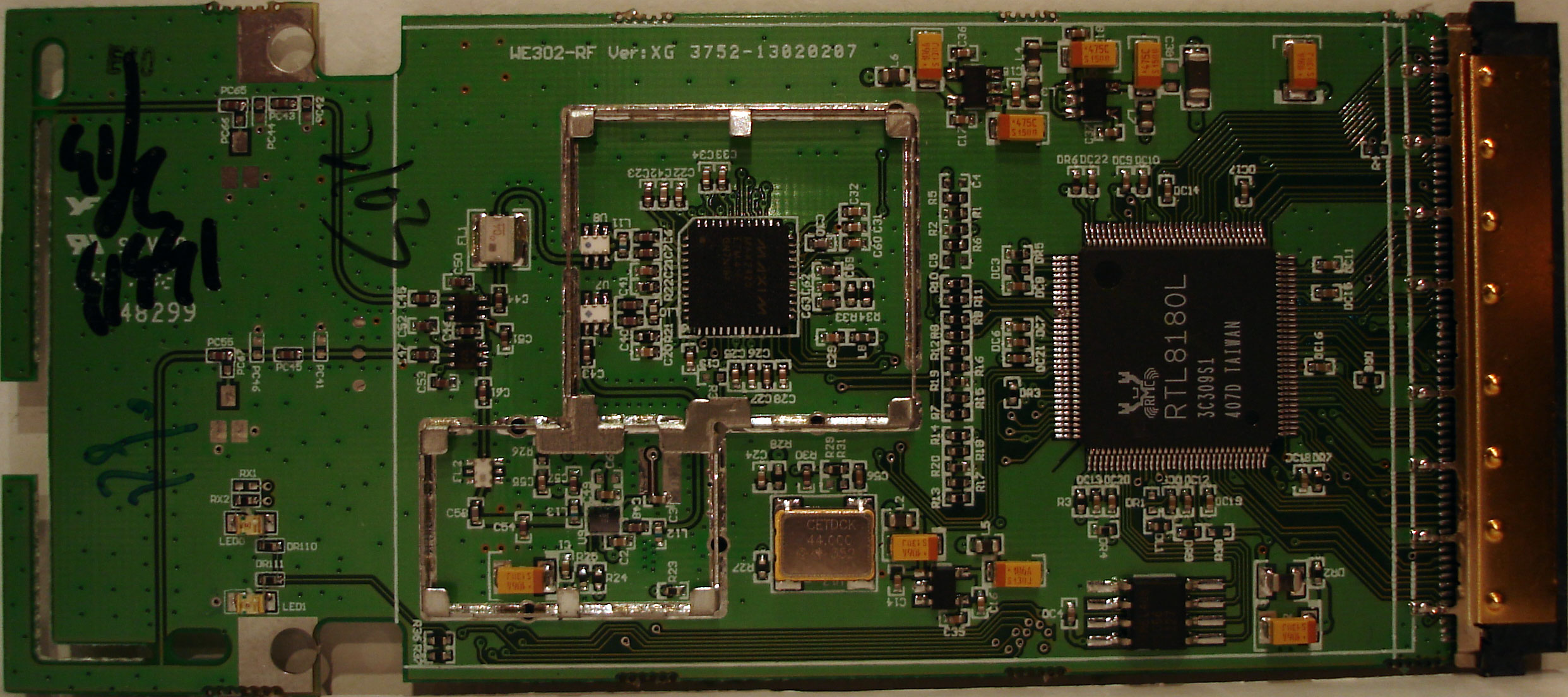

WPC 11 version 4 card


This is what I use as an external antenna 10dBi Collinear

Another interesting one patch
